Name: Teamelite TE03 29 Deore
Brand: BMC
SKU: BMC-15a-000047-s0040
Availability: OutOfStock

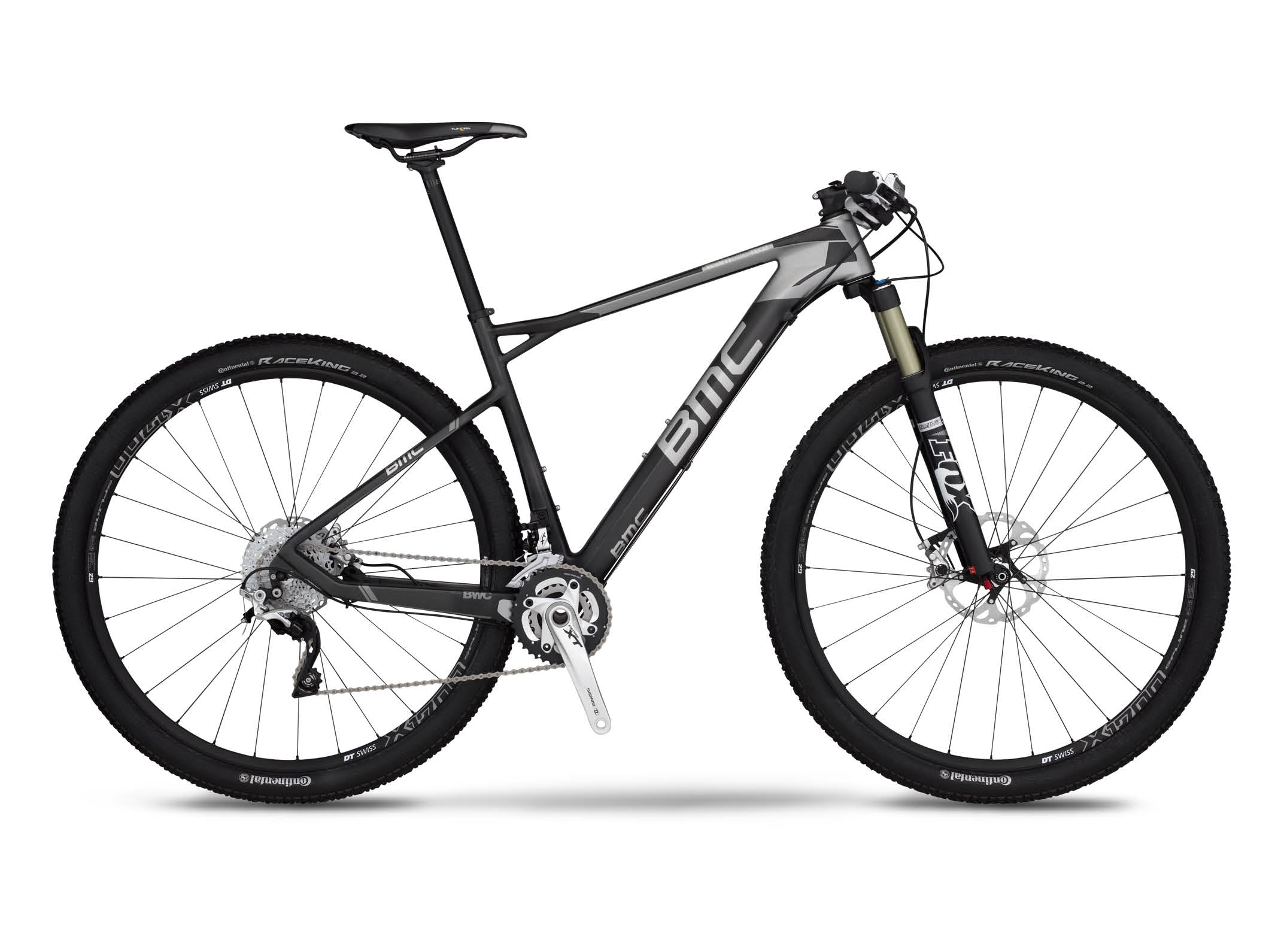

BMC Bikes | Teamelite TE03 29 Deore WHITE

Color: White
Model Year: 2015

BMC Archive Product

Compatible Parts & Accessories

Dropout - No 48

EUR 15,00 Buy Now

[{"id":40944135700559,"title":"XS","option1":"XS","option2":null,"option3":null,"sku":"BMC-15a-000047-s0040","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"Teamelite TE03 29 Deore - XS","public_title":"XS","options":["XS"],"price":0,"weight":0,"compare_at_price":null,"inventory_quantity":0,"inventory_management":"shopify","inventory_policy":"deny","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40944135995471,"title":"S","option1":"S","option2":null,"option3":null,"sku":"BMC-15a-000047-s0050","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"Teamelite TE03 29 Deore - S","public_title":"S","options":["S"],"price":0,"weight":0,"compare_at_price":null,"inventory_quantity":0,"inventory_management":"shopify","inventory_policy":"deny","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40944136192079,"title":"M","option1":"M","option2":null,"option3":null,"sku":"BMC-15a-000047-s0070","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"Teamelite TE03 29 Deore - M","public_title":"M","options":["M"],"price":0,"weight":0,"compare_at_price":null,"inventory_quantity":0,"inventory_management":"shopify","inventory_policy":"deny","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40944136519759,"title":"L","option1":"L","option2":null,"option3":null,"sku":"BMC-15a-000047-s0090","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"Teamelite TE03 29 Deore - L","public_title":"L","options":["L"],"price":0,"weight":0,"compare_at_price":null,"inventory_quantity":0,"inventory_management":"shopify","inventory_policy":"deny","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

Technical Overview

Frameset

Frame:
TE03 aluminium | Hydroformed Alloy

Cockpit

Handlebar:
BMC MFB03

Stem:
BMC MSM02

Seat

Seatpost:
BMC MSP03

Saddle:
Selle Royal Seta

Drivetrain

Gears:
2 x 10

Crankset:
Shimano Deore FC-M625 38-24

Cassette:
Shimano CS-HG50 11-36

Chain:
KMC X10

Front Derailleur:
Shimano Deore FD-616-B

Rear Derailleur:
Shimano RD-M610-GS

Shifters:
Shimano Deore SL-M610

Brakes

Brake Levers / Calipers:
Shimano BL/BR-M355 180/160

Wheels

Rims:
DT Swiss 466D

Hubs (F/R):
Shimano HB/FH-RM66

Tires:
Continental RaceKing 2.2 Performance

Additional Information

General Product Safety Regulation (GPSR):
Safety Instructions GPSR (EU)
Responsible person according to GPSR (EU)

Size	XS	S	M	L
Rider Height	< 165	165-174	170-182	180-195
Reach	377	405	425	445
Stack	594	610	620	630
Bar Rise	4	4	4	4
Bar Sweep	9	9	9	9
Bar Width	720	720	720	720
BB Drop	65	65	65	65
Crank Length	170	170	175	175
Fork Length	486	506	506	506
Fork Rake	51	51	51	51
Front Center	620	653	677	700
Head Tube	90	90	100	110
Head Tube Angle	70	70	70	70
Rear Center	440	440	440	440
Seat Angle	73.5	73.5	73.5	73.5
Seat Tube	400	445	485	535
Seatpost Length	350	400	400	400
Stem Angle	6	6	6	6
Stem Length	70	70	70	70
Top Tube	553	586	609	632
Trail	80	80	80	80
Wheelbase	1060	1094	1127	1142
