Name: Timemachine ONE
Brand: BMC
SKU: 30002557
Price: 3299.0 EUR
Availability: OutOfStock

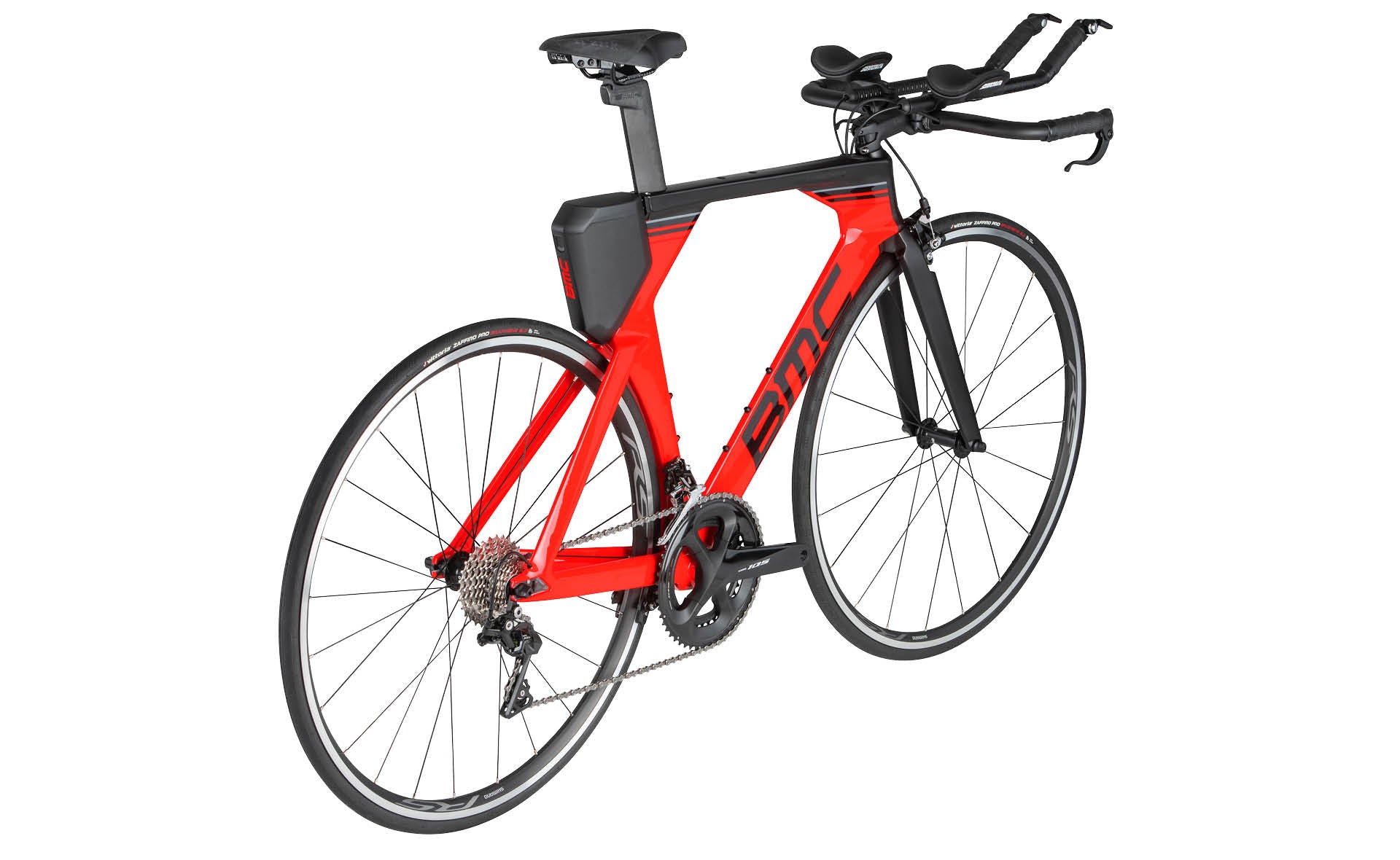

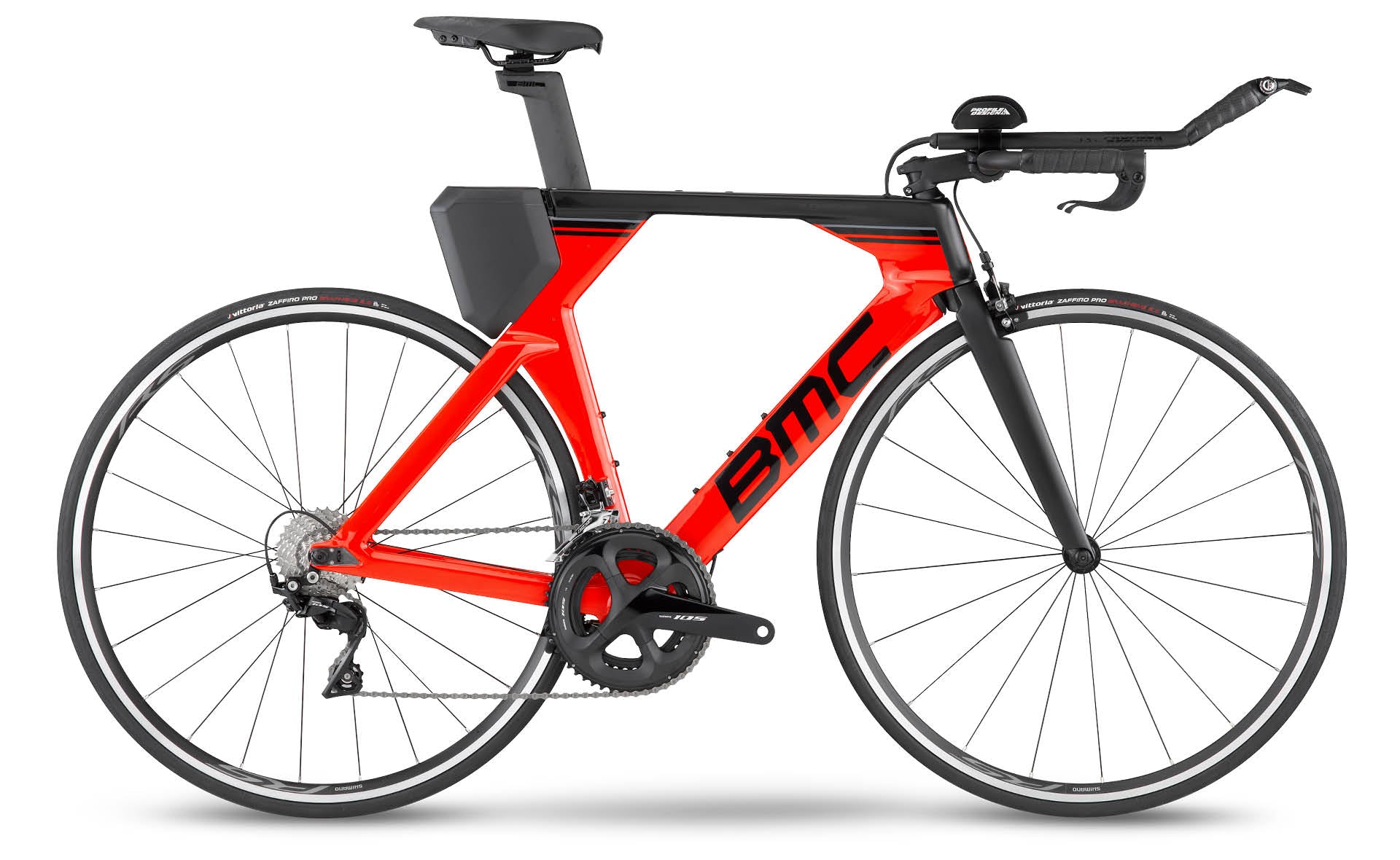

BMC Bikes | Timemachine ONE NEON RED / BLACK

Farbe: Neon Red / Black
Modelljahr: 2023

BMC Archive Produkt

Kompatible Teile und Zubehör

Di2 plug Kit - No 3

EUR 15,00 Jetzt kaufen

Dropout - No 36

EUR 19,00 Jetzt kaufen

Seatpost Clamp Front

EUR 39,00 Nicht am Lager

Seatpost Clamp Rear

EUR 39,00 Jetzt kaufen

Seatpost Cover Front

EUR 15,00 Jetzt kaufen

Seatpost Cover Rear

EUR 15,00 Jetzt kaufen

Timemachine 01 / 02 Rear Box

EUR 49,00 Jetzt kaufen

timemachine 01 / 02 Rear Box Mount

EUR 25,00 Jetzt kaufen

TM01 Axle Adjuster - No 1

EUR 25,00 Jetzt kaufen

TM01 Cutting Tool

EUR 15,00 Jetzt kaufen

TM01 FD Cable Cover

EUR 25,00 Jetzt kaufen

TM01 FD Cable Stopper

EUR 39,00 Jetzt kaufen

TM01 Fork Bumpers

EUR 25,00 Jetzt kaufen

TM01 Seatpost

EUR 249,00 Jetzt kaufen

TM01 SP Play Killer

EUR 15,00 Jetzt kaufen

TM01 Top Tube Plug

EUR 15,00 Jetzt kaufen

TM02 Headset FSA 28 - No. 42-ACB-3

EUR 49,00 Jetzt kaufen

[{"id":40922305691727,"title":"S","option1":"S","option2":null,"option3":null,"sku":"30002557","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"Timemachine ONE - S","public_title":"S","options":["S"],"price":329900,"weight":13,"compare_at_price":null,"inventory_quantity":0,"inventory_management":"shopify","inventory_policy":"deny","barcode":"7630027886085","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40922305888335,"title":"S-M","option1":"S-M","option2":null,"option3":null,"sku":"30002558","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"Timemachine ONE - S-M","public_title":"S-M","options":["S-M"],"price":329900,"weight":13,"compare_at_price":null,"inventory_quantity":0,"inventory_management":"shopify","inventory_policy":"deny","barcode":"7630027886078","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40922305953871,"title":"M-L","option1":"M-L","option2":null,"option3":null,"sku":"30002559","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"Timemachine ONE - M-L","public_title":"M-L","options":["M-L"],"price":329900,"weight":13,"compare_at_price":null,"inventory_quantity":0,"inventory_management":"shopify","inventory_policy":"deny","barcode":"7630027886061","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40922306248783,"title":"L","option1":"L","option2":null,"option3":null,"sku":"30002560","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"Timemachine ONE - L","public_title":"L","options":["L"],"price":329900,"weight":13,"compare_at_price":null,"inventory_quantity":0,"inventory_management":"shopify","inventory_policy":"deny","barcode":"7630027886054","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

Technische Übersicht

Rahmenset

Rahmen:
Timemachine Carbon with Vmax Aero Design and P2P Positioning SyStem | P2P Dual-Mount Aeropost Configuration | Internal Di2 Battery Mount | Rear Storage Box | Sliding Dropouts

Gabel:
Timemachine Carbon with Vmax Aero Design Hinge Design

Cockpit

Vorbau:
BMC RSM 01

Lenker:
Profile WING 10a Basebar | Sonic Ergo 35A Aerobar

Sattel

Sattelstütze:
Timemachine Carbon V-Max Aero Seatpost

Sattel:
Fizik Mistica Mg

Antrieb

Crankset:
SHIMANO 105 (FC-R7000)

Chainrings:
53-39T

Cassette:
SHIMANO 105 (CS-R7000)

Cassette Size:
11-30T

Chain:
SHIMANO HG601

Front Derailleur:
SHIMANO 105 (FD-R7000)

Rear Derailleur:
SHIMANO 105 (RD-R7000)

Shifters:
SHIMANO Dura Ace (SL-BSR1) Bar End

Gears:
2 x 11

Bottom Bracket:
PF86 Bottom Bracket

Räder

Felgen:
SHIMANO WH-RS100 | 24mm

Naben (V/H):
SHIMANO WH-RS100

Bereifung:
Vittoria Zaffiro Pro | 25mm

Zubehör

Lieferumfang:
Aerocore Bottle Cages

Weitere Informationen

Reifenfreiheit:
27mm measured tire

ASTM-Klassifizierung:
Level 1

Maximales Systemgewicht:
110kg

Produktsicherheitsverordnung (GPSR):
Sicherheitshinweise GPSR (EU)
Verantwortliche Person gemäss GPSR (EU)

Size	S	S-M	M-L	L
Rider Height	<170	172-180	178-188	186-196
Reach	393	377	418	442
Stack	480	515	515	556
Bar Reach	160	160	160	160
Bar Width	400	420	420	420
BB Drop	58	68	68	68
Crank Length	165	170	170	172.5
Fork Length	374	374	374	374
Fork Rake	45	45	45	45
Front Center	580	578	619	649
Head Tube	97	111	111	153
Head Tube Angle	71.5	71.5	71.5	71.5
Rear Center	393-404	393-404	393-404	393-404
Saddle Height Range	630 - 780	660 - 850	660 - 850	700 - 880
Seat Angle	71.5 - 80.8	71.5 - 80.8	71.5 - 80.8	71.5 - 80.8
Seat Tube	495	550	550	592
Seatpost Offset	27 / 9 / -9 / -27	27 / 9 / -9 / -27	27 / 9 / -9 / -27	27 / 9 / -9 / -27
Standover Height	755	797	797	838
Stem Angle	±8	±8	±8	±8
Stem Length	90	90	100	110
Trail	60	60	60	60
Wheelbase	964	967	1008	1038
