Name: Fourstroke 01 THREE
Brand: BMC
SKU: 30007113
Price: 4499.0 EUR
Availability: OutOfStock

Neon Red

Fourstroke 01 frameset with 110/100 mm suspension. Rockshox SID suspensions, SHIMANO SLX drivetrain and DT Swiss X 1900 wheels.

EUR 4.499,00

SKU: 30007113

Size —

Check for availability within our Retailer Network

[{"id":55287207133570,"title":"S","option1":"S","option2":null,"option3":null,"sku":"30007113","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"Fourstroke 01 THREE - S","public_title":"S","options":["S"],"price":449900,"weight":20000,"compare_at_price":null,"inventory_quantity":0,"inventory_management":"shopify","inventory_policy":"deny","barcode":"7630906524039","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":55287207166338,"title":"M","option1":"M","option2":null,"option3":null,"sku":"30007114","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"Fourstroke 01 THREE - M","public_title":"M","options":["M"],"price":449900,"weight":20000,"compare_at_price":null,"inventory_quantity":0,"inventory_management":"shopify","inventory_policy":"deny","barcode":"7630906524022","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":55287207199106,"title":"L","option1":"L","option2":null,"option3":null,"sku":"30007115","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"Fourstroke 01 THREE - L","public_title":"L","options":["L"],"price":449900,"weight":20000,"compare_at_price":null,"inventory_quantity":0,"inventory_management":"shopify","inventory_policy":"deny","barcode":"7630906524015","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":55287207231874,"title":"XL","option1":"XL","option2":null,"option3":null,"sku":"30007116","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"Fourstroke 01 THREE - XL","public_title":"XL","options":["XL"],"price":449900,"weight":20000,"compare_at_price":null,"inventory_quantity":0,"inventory_management":"shopify","inventory_policy":"deny","barcode":"7630906524008","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

With multiple podiums and dominating on multiple terrains, Fourstroke 01 is a race-proven XCO machine engineered to meet the needs of elite riders. Equipped with our APS dual-link suspension system, every pedal stroke will be translated into race speed. Travel is fine tuned to 110 mm front and 100 mm rear with Rockshox SID SL Select 3P fork and SIDLUXE Select+ 3P rear shock bringing balance and performance on the toughest tracks. Built around a Premium Carbon frame with BMC modern geometry and integrated protections, it fits two bottles for endurance stages. Transmission is guaranteed by the sharp SHIMANO SLX, and wheels are the highly reliable DT Swiss X 1900.

Technology

Design Boost

Put the hammer down! The redesigned chassis excels in torsional and pedalling stiffness for unparalleled power delivery. A true performance leap that boosts one of the most successful XC race bikes on the scene to a new level.

Optimized APS Suspension

More traction equals more speed and that is what we’re after. Next-level kinematics tuning, and best-in-class suspension performance delivers full traction, great efficiency, and active suspension on every terrain.

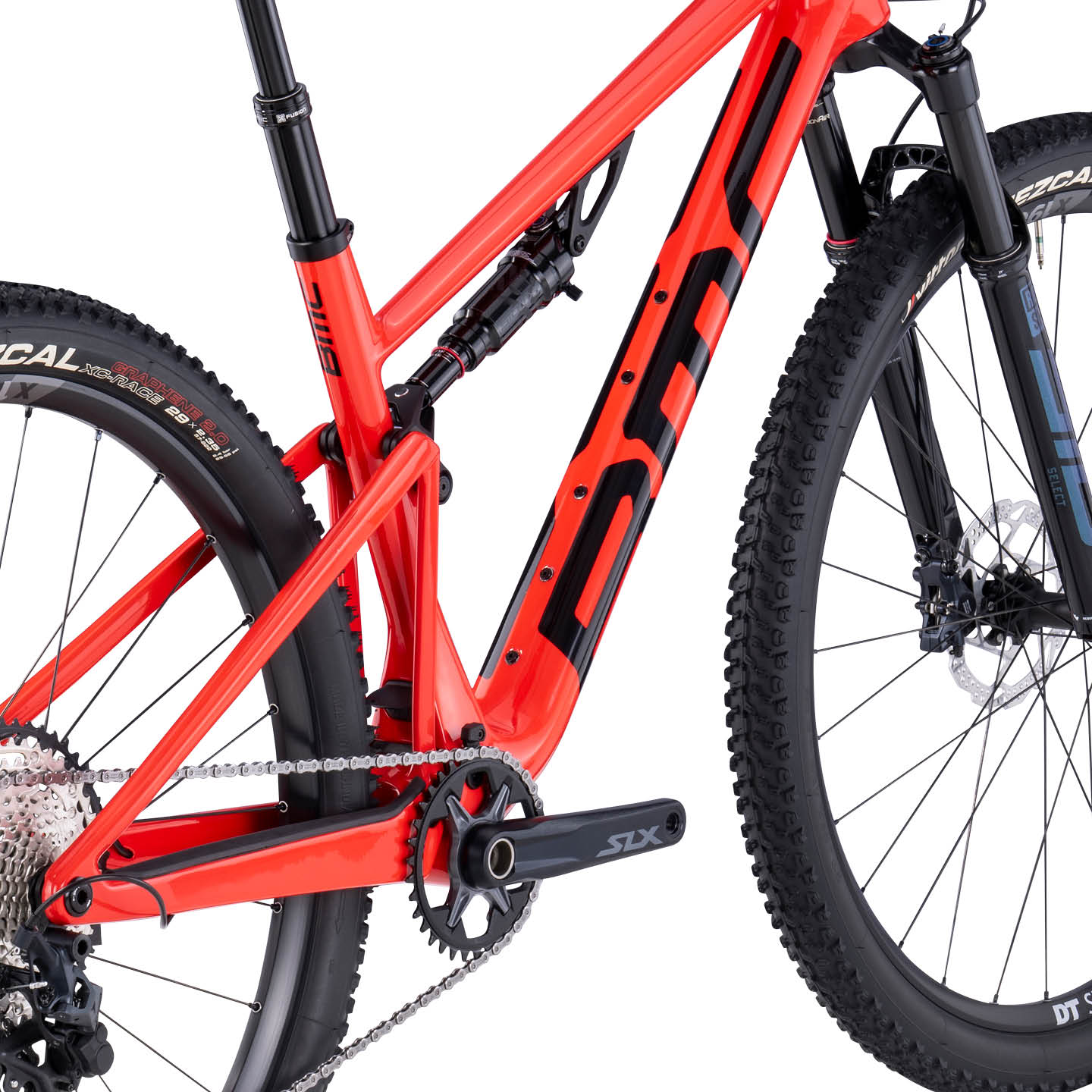

Go Long

This medal-winning marathon machine is versatile by design. Allowing you to go far, the Fourstroke 01 has been optimized to fit two water bottles and offers a tire clearance of 62mm to fit modern 2.4” XC tires.

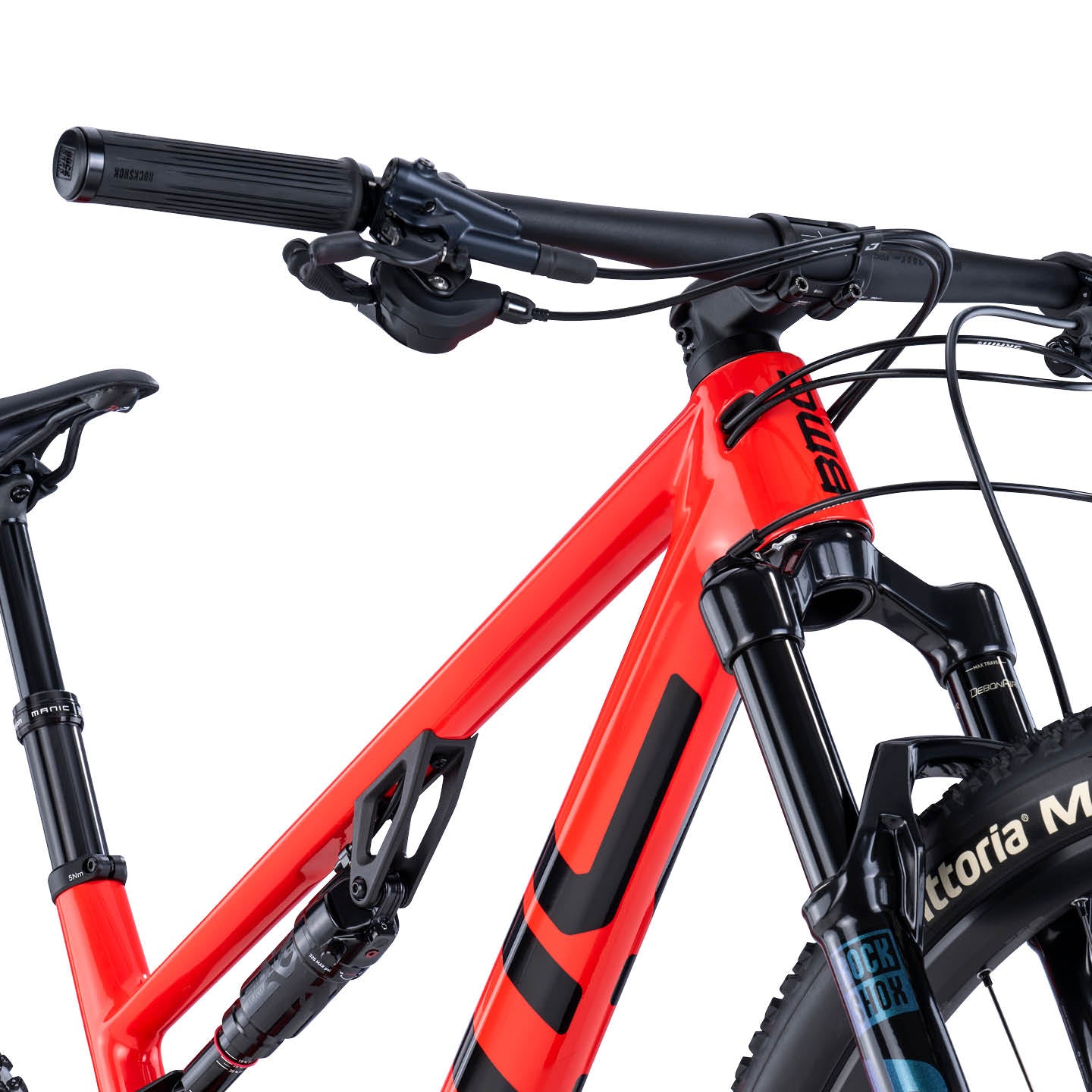

Redefined Geometry

BMC Race is tailored to a fast and progressive racing style designed to attack the steepest and loosest courses with the improved 66.5˚ head angle and a long front-end.

Technical Overview

Frameset

Frame:
Fourstroke 01 Premium Carbon with APS Suspension System 100mm Travel | Fully Guided Internal Cable Routing | Post Mount Disc | 12 x 148mm Boost Thru-Axle

Fork:
Rockshox SID SL Select 3P | 110mm Travel

Suspension

Front Suspension:
Rockshox SID SL Select 3P | 110mm Travel

Rear Suspension:
RockShox SIDLUXE Select+ 3P | 100mm Travel

Remote Lockout:
RockShox TwistLoc 3P

Cockpit

Stem:
BMC MSM 01

Handlebar:
BMC MFB 02 Alloy | 750mm

Seat

Seatpost:
BMC MSP 03 | 31.6mm | 0mm Offset

Saddle:
Fizik Antares R7

Drivetrain

Crankset:
SHIMANO SLX (FC-M7100-1)

Chainrings:
34T

Cassette:
SHIMANO Deore SLX (CS-M7100)

Cassette Size:
11-51T

Chain:
SHIMANO CN-M6100

Rear Derailleur:
SHIMANO SLX (RD-M7100)

Shifters:
SHIMANO SLX (SL-M7100) | Rapidfire Plus

Gears:
1 x 12

Bottom Bracket:
PF92 Bottom Bracket

Brakes

Brake Levers / Calipers:
SHIMANO SLX BL-M7100 Levers | BR-M7100 Calipers

Rotors:
SHIMANO SM-RT54

Rotor Size (F/R):
160 / 160 S-M | 180 / 160 L-XL

Wheels

Rims:
DT Swiss X 1900 | 25mm Inner Width

Hubs (F/R):
DT Swiss

Tires:
Vittoria Mezcal | Tubeless | 2.35"

Tubeless Information:
Tubeless Ready Rims | Tubetype Tires

Additional Information

Tire Clearance:
62mm

Weight without Pedals:
12.1kg | Size 54 with all accessories

ASTM Classification:
Level 3

System Weight Limit:
110kg

General Product Safety Regulation (GPSR):
Safety Instructions GPSR (EU)
Responsible person according to GPSR (EU)

Size	S	M	L	XL
Rider Height	<172	172-182	180-188	>188
Reach	437	457	477	500
Stack	584	592	600	615
Bar Sweep	9°	9°	9°	9°
Bar Width	750	750	750	750
BB Drop	53	53	53	53
Fork Length	513	513	513	513
Fork Rake	44	44	44	44
Front Center	714	738	762	791
Head Tube	84	93	101	118
Head Tube Angle	66.75°	66.75°	66.75°	66.75°
Rear Center	432	432	432	432
Seat Angle	75.6°	75.6°	75.6°	75.6°
Seat Tube	420	430	460	490
Seatpost Drop	100	100	125	125
Seatpost Length	310	310	361	361
Seatpost Offset	0	0	0	0
Standover Height	725	725	725	765
Stem Angle	-5°	-5°	-5°	-5°
Stem Length	50	60	60	70
Top Tube	574	597	621	649
Trail	113	113	113	113
Wheelbase	1139	1171	1188	1218
